Copper Rod
Drawn Solid Wire
Our Drawn Wire is drawn from ASTM B-49 copper rod. Drawn Wire is produced with a smooth, clean, bright surface finish that is free of oxidation. Our Wire is packaged in either cardboard boxes or steel reels.
Features & Characteristics
- Produced in sizes ranging from 6-16 AWG
- Meets ASTM B1, B2 and B3 requirements
- Can be drawn to customers’ precise specifications
- Can be made from either Advantage or Elemental rod
- Quick turnaround
Applications
- Residential and commercial building wire
- Alarm and irrigation wire
- Data cable

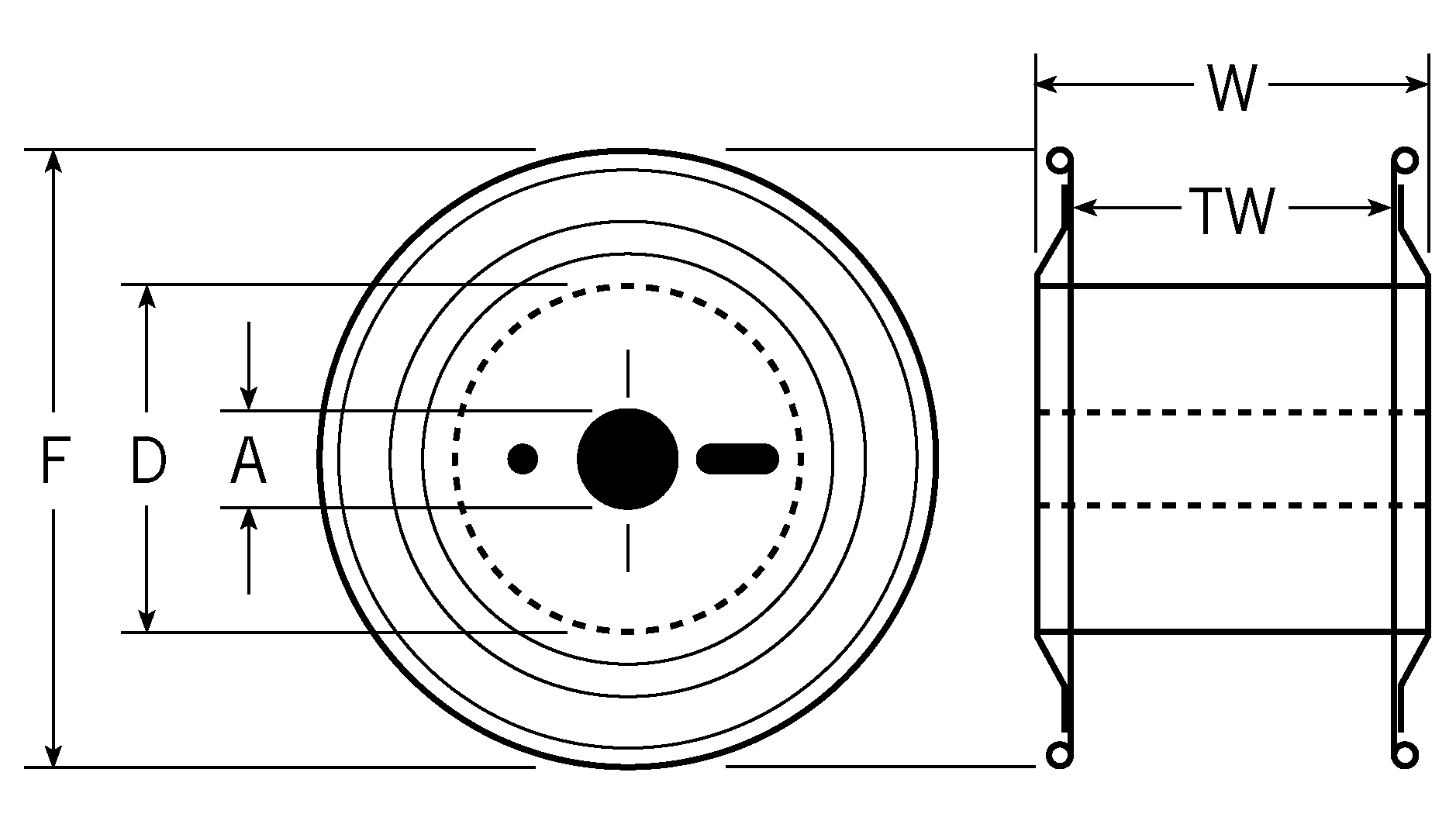

Reel Dimensions: DIN 800
| in | mm | |
| Flange | 31.5 | 800 |
| Width (OAW) | 22.44 | 570 |
| Traverse Width | 19.69 | 500 |
| Drum | 17.72 | 450 |
| Arbor | 5 | 127 |
Reel Dimensions: DIN 710
| in | mm | |
| Flange | 27.95 | 710 |
| Width (OAW) | 16.73 | 425 |
| Traverse Width | 13.97 | 355 |
| Drum | 13.97 | 355 |
| Arbor | 5 | 127 |
Reel Dimensions: DIN 630
| in | mm | |
| Flange | 24.8 | 630 |
| Width (OAW) | 18.75 | 476 |
| Traverse Width | 15.75 | 400 |
| Drum | 12 | 305 |
| Arbor | 5 | 127 |
Standard Sizes
| AWG | in | mm |
| 6 | 0.1620 | 4.115 |
| 8 | 0.1235 | 3.263 |
| 10 | 0.1019 | 2.588 |
| 12 | 0.0808 | 2.052 |
| 14 | 0.0641 | 1.627 |
| 16 | 0.0508 | 1.290 |

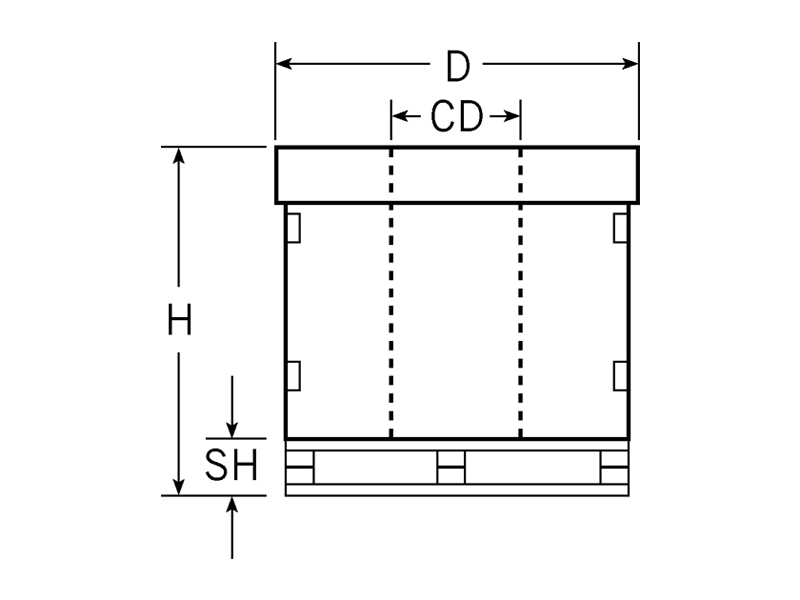

Cardboard Box Packaging Dimensions
| Height | 37.5" |
| Diameter | 44" |
| Core Diameter | ~21" |
| Skid Height | ~5" |
